Tethered Drone
Safety & Security
Product Overview
The GA-IN-TD Tethered Drone from Garuda Aerospace is a persistent aerial surveillance platform designed for continuous monitoring of critical infrastructure and high-security zones. Powered through a tethered power system, the drone can remain airborne for extended durations of up to 12 hours, enabling uninterrupted situational awareness. Equipped with thermal and RGB cameras, it delivers real-time intelligence for industrial security, border surveillance, and large-event monitoring.
Technical Data
Model Name
GA-IN-TD
Max Payload
10 kg
All Up Weight
25 kg
Max Speed
5 m/s
Max Endurance
Up to 12 hrs (20 min rest every 4 hrs)
Max Range
100 m
Operating Altitude
6000 m
Dimensions
2000 x 2000 x 560 mm
Speed of Climb
2 m/s
System Features
Persistent aerial surveillance capability.
Continuous power supply through tethered cable.
Stable hover for long-duration monitoring missions.
Real-time video streaming and situational awareness.
High-resolution optical and thermal imaging.
Rapid deployment for security operations.
Ideal for perimeter monitoring and infrastructure protection.
Reduced operational downtime compared to battery-powered drones.
Payload & Sensor System
Tethered Power System
Provides continuous power from the ground station for extended flight duration and persistent surveillance.
GPS
Enhanced flight tracking with GPS navigation support for stable positioning and oversight.
Applications

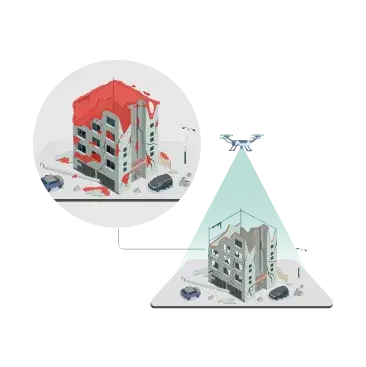

Disaster Monitoring

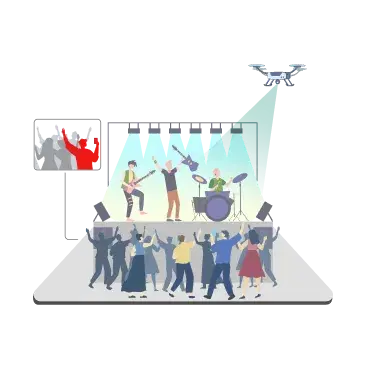

Public Safety & Events

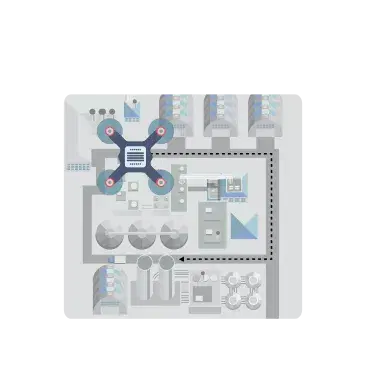

Defence & Border Security

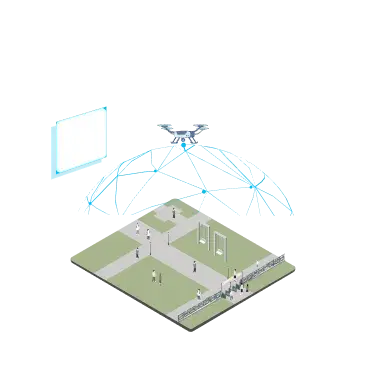

Industrial Security
Garuda's Advantage
Real-time intelligence and situational awareness.
Rapid deployment for defence and emergency operations.
Enhanced security for critical infrastructure.
